Woven Bag Double Shaft Shredder Shredding Old Cloth Wood Machine
Dettagli:
| Luogo di origine: | Cina |
| Marca: | TONTEN |
| Numero di modello: | TT-S1000 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | I piccoli modelli sono imballati in scatole di legno, i grandi modelli caricati in container. |
| Tempi di consegna: | 7-10 giorni di lavoro |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 20 set al mese |
|
Informazioni dettagliate |
|||
| Potenza motoria: | 30KW | Numero di lame della tritare: | 20 pezzi |
|---|---|---|---|
| Dimensione del porto dell'alimentazione: | 1000x800 mm | Materiale del corpo: | Acciaio al carbonio |
| Modalità di unità: | Azionamento a doppio motore | Materiali applicabili: | Sacca intrecciata vecchia stoffa in legno |
| Dimensioni: | 3000 x 2000 x 2000 mm | Nome modello: | Tritura a doppio albero |
| Evidenziare: | woven bag shredding machine,double shaft cloth shredder,wood shredding crusher machine |
||
Descrizione di prodotto

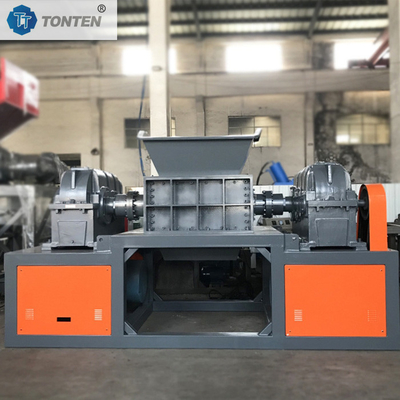

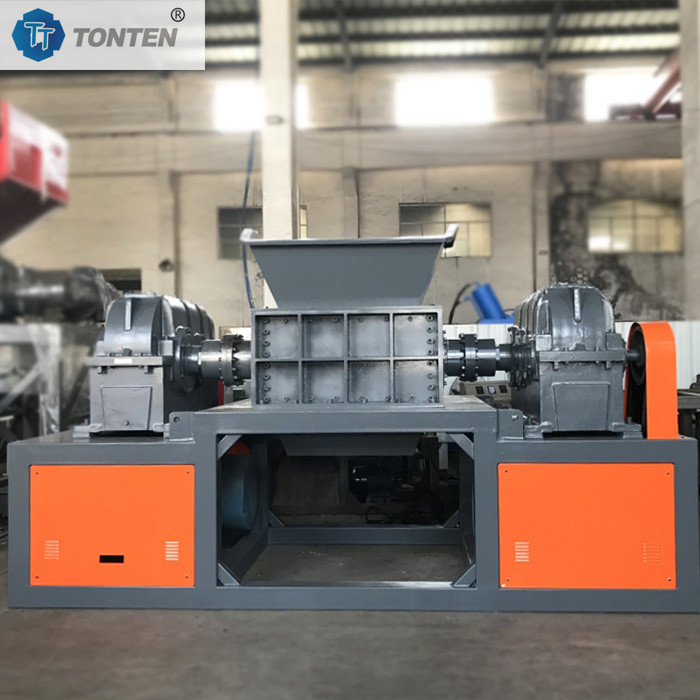

Woven Bag Double Shaft Shredder Shredding Old Cloth Wood Machine
Structural Features:
Dual-Shaft Design: Utilizing two parallel rotating shafts, a dual-shaft shredder provides more uniform shredding, reducing material clogging and stagnation.
Blade System: Equipped with multiple shredder blades, typically made of high-alloy steel for high strength and wear resistance. The rational arrangement of the blades ensures effective shredding of a wide variety of materials.
Body Structure: The body is typically constructed of heavy-duty carbon steel, ensuring stability and durability under high loads.
Power System: Dual-shaft shredders are equipped with dual motors, providing powerful power and ensuring efficient and fast shredding.
Feed Inlet: The wide feed inlet, typically measuring 1000 x 800 mm, facilitates material input and accommodates a wide variety of materials.
Control System: Dual-shaft shredders are equipped with a PLC automatic control system, enabling automated operation and enhancing user convenience and safety.
Cooling System: Air or water cooling is used to prevent damage from overheating during extended operation.
Safety: Multiple safety features ensure operator safety.
Workflow:
Material Preparation: Place the material to be shredded into the feed port, ensuring that the material size is suitable for the machine.
Starting the Machine: Start the motor, the machine begins operation, and the dual shafts begin rotating.
Shredding Process: The material enters the shredding chamber of the dual shaft shredder, where the dual shaft blades tear and shear the material, gradually breaking it into smaller pieces.
Material Discharge: The shredded material is discharged through the discharge port, typically for further processing on a conveyor belt or other equipment.
Monitoring and Adjustment: The operator can monitor the machine status through the control panel and perform adjustments and maintenance as necessary.
Cleaning and Maintenance: Regularly clean and maintain the dual shaft shredder to ensure long-term stable operation.
Double shaft shredder specification:
|
Model type |
Dimension size(mm) |
Feed size(mm) |
Blads(mm) |
Motor power(kw) |
Weight(kg) |
|
TT-S600 |
2300x1500x1620 |
600X460 |
200 |
11×2 |
1580 |
|
TT-S800 |
2820×1600×2050 |
800X720 |
260 |
15×2 |
3500 |
|
TT-S1000 |
3300×1900×2200 |
1000×800 |
300 |
22×2 |
5000 |
|
TT-S1200 |
3500×2000×2500 |
1200×980 |
320 |
30×2 |
6200 |
|
TT-S1500 |
4100×2260×2800 |
1500×1000 |
550 |
55×2 |
7000 |
|
TT-S1600 |
5800×2400×3300 |
1800×1206 |
560 |
75×2 |
7500 |
|
TT-S1800 |
6100×2700×3500 |
2000×1490 |
600 |
90×2 |
8900 |

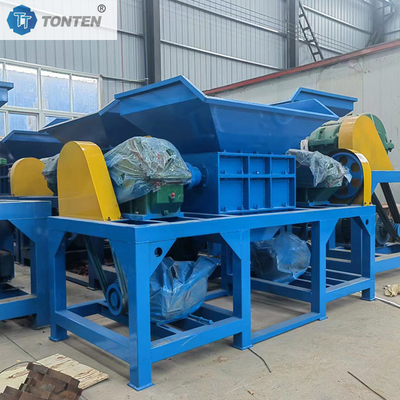

Shredder machine workshop:
