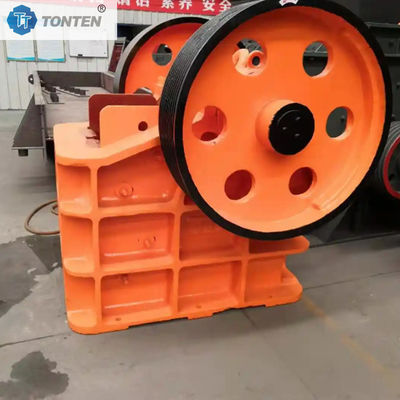

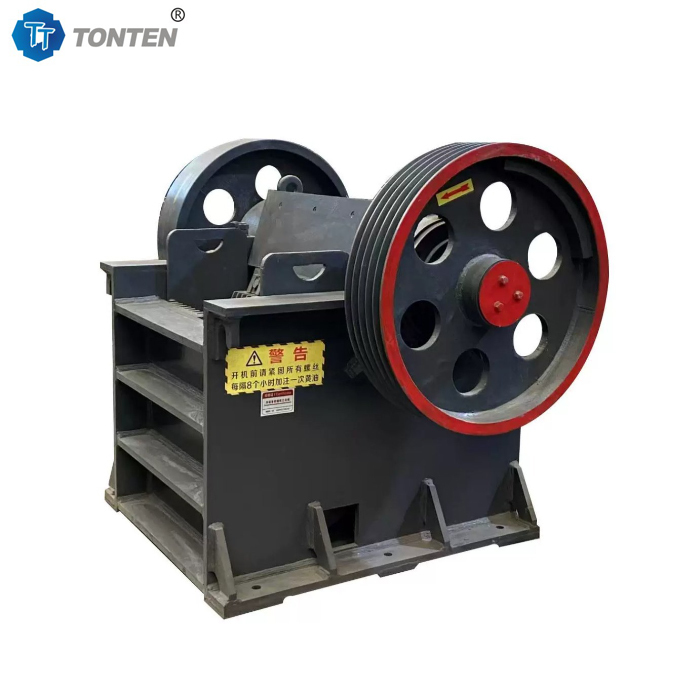

250*1000 Type Primary Jaw Crusher Hard Rock Ore Aggregates Crushing Machine
Dettagli:
| Luogo di origine: | Cina |
| Marca: | TONTEN |
| Numero di modello: | Tt-jm |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | Imballaggio in cassa di legno o su misura |
| Tempi di consegna: | 5-8 giorni |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 1-2 serie circa 5-8 giorni |
|
Informazioni dettagliate |
|||
| Grado di schiacciamento: | Frantoio grezzo | Livello di automazione: | Automatico |
|---|---|---|---|
| Operazione: | Facile | Materiale di produzione: | Polvere fine |
| Materiale: | Acciaio | Articolo: | macchina del frantoio |
| Materiali: | Granito, calcare, minerale di ferro e cemento | Un altro nome: | Jaw Breaker |
Descrizione di prodotto
250*1000 Type Primary Jaw Crusher Hard Rock Ore Aggregates Crushing Machine
The jaw crusher is a mechanical device designed to reduce large-sized raw materials (such as granite, limestone, iron ore, and concrete) into smaller, uniform particles. It operates on the principle of "compressive crushing" and is widely used in mining, construction, cement, metallurgy, and road-building industries. With a history of over a century, modern jaw crushers have evolved to be more energy-efficient, durable, and easy to maintain—meeting the high demands of today’s industrial workflows.
Working Principle
The jaw crusher works on a "crushing by compression" mechanism, driven by an eccentric shaft:
1.Feeding: Raw materials are fed into the crushing cavity (between the fixed jaw and movable jaw) via a hopper.
2.Crushing Process: The motor drives the eccentric shaft to rotate, which pulls the movable jaw back and forth. When the movable jaw moves toward the fixed jaw, the materials are squeezed, crushed, and fractured; when it moves away, the crushed materials fall through the discharge gap under gravity.
3.Continuous Output: This reciprocating motion repeats continuously, achieving efficient, uniform crushing of large materials into smaller particles.
Primary Jaw Crusher Main Details Parameters
| Items | Main Parameters |
| Feed size | 250*1000 |
| Max feeding size(mm) | 210 |
| Capacity(t/h) | 16-52 |
| Rotation speed of eccentric shaft(r/min) | 330 |
| Motor power(kw) | 30 |
| Total weight(t) | 7 |
| Overall dimension(mm) | 1560*1950*1390 |
Primary Jaw Crusher More Informations Key Features
①Robust & Durable Structure: Built with high-quality manganese steel jaws (wear-resistant) and a heavy-duty frame, it withstands extreme pressure and impact from hard materials.
②Adjustable Discharge Size: The gap between the fixed jaw and movable jaw can be easily adjusted (via hydraulic or mechanical systems), allowing flexible output particle sizes (from 50mm to 300mm) to match different production needs.
③Energy-Efficient Operation: Advanced eccentric shaft design and optimized crushing cavity reduce power consumption by 10–15% compared to traditional models, lowering your operational costs.
④Safe & Easy Maintenance: Large access doors and modular components make it simple to inspect, replace parts (e.g., jaw plates), and perform routine maintenance.
⑤Wide Material Compatibility: Handles almost all hard and medium-hard materials (Mohs hardness 3–10), including granite, basalt, quartz, iron ore, and construction waste.
Jaw Crusher Machine Typical Applications
①Mining Industry: Primary crushing of iron ore, copper ore, gold ore, and coal to prepare materials for grinding and beneficiation.
②Construction & Infrastructure: Crushing limestone, granite, and concrete aggregates for building foundations, highways, bridges, and concrete mixing.
③Waste Recycling: Processing construction waste (bricks, concrete blocks) into reusable aggregates, supporting environmental sustainability.
④Cement & Metallurgy: Crushing raw materials (clay, iron ore) for cement production and metal ore beneficiation.
