High Efficiency Jaw Crusher Machine 400*600 Type Industrial Crushing Essential

Dettagli:

Luogo di origine: Cina
Marca: TONTEN
Numero di modello: Tt-jc

Termini di pagamento e spedizione:

Quantità di ordine minimo: 1 set
Prezzo: Negoziabile
Imballaggi particolari: Imballaggio in legno
Tempi di consegna: 7-10 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 1-2 serie circa 7-10 giorni
Miglior prezzo Contatto

Informazioni dettagliate
Effetto: Bene Origine: Cina
Livello di automazione: Automatico Garanzia: 1 anno
Condizione: NUOVO Materiale principale: Acciaio alto manganese
Dimensioni: 1730 x 1730 x 1630 mm Pezzi di ricambio: Fornitura

Descrizione di prodotto

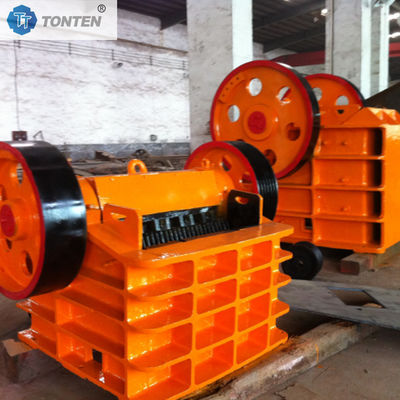

High Efficiency Jaw Crusher Machine 400*600 Type Industrial Crushing Essential


The jaw crusher is a robust primary crushing equipment designed for hard and abrasive materials. It’s a cornerstone in mining, construction, and aggregate production, delivering reliable performance for bulk material reduction. Jaw crushers feature a large crushing ratio, high output, uniform particle size, simple structure, reliable operation, and easy maintenance. It comes in different models, allowing you to choose the appropriate model for different production volumes.


High Efficiency Jaw Crusher Machine Working Principle


The jaw crusher mainly consists of a frame, eccentric shaft, large pulley, flywheel, moving jaw, side guard plate, toggle plate, toggle plate seat, adjusting screw, return spring, fixed jaw plate and moving jaw plate, among which the toggle plate also serves as a safety device.


Adopting the "compression crushing" mechanism, the crusher features a fixed jaw plate and a movable jaw plate. Driven by the eccentric shaft, the movable jaw moves back and forth to squeeze, crush, and bend materials between the two plates. Materials are fed from the top inlet, gradually reduced to the desired size, and discharged from the bottom outlet.

High Efficiency Jaw Crusher Machine Main Parameters

Items

 Main Technical Parameters

Feed size

 400*600mm
Max feeding size 340mm
Adjustable size of discharge opening 400-100mm
Capacity 16-60t/h
Rotation speed of eccentic shaft 275r/min
Motor power 30kw
Model 400*600 Type

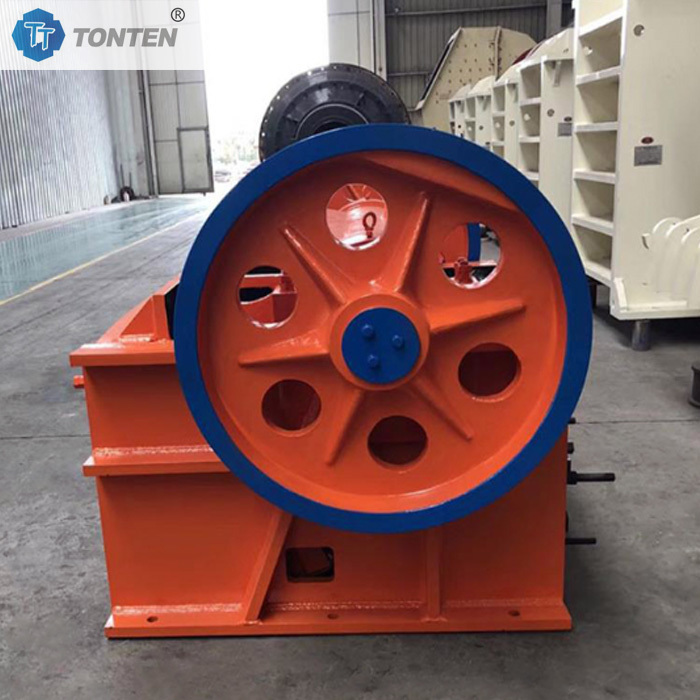

High Efficiency Jaw Crusher Machine More Detail Information

High Efficiency Jaw Crusher Machine 400*600 Type Industrial Crushing Essential 0


High Efficiency Jaw Crusher Machine Key Features & Advantages

①Exceptional durability with high-strength steel frame and wear-resistant jaw plates, extending service life.

②Adjustable discharge gap to flexibly meet different particle size requirements for diverse applications.

③Energy-efficient design with low power consumption and high crushing ratio, reducing operational costs.

④Simple structure, easy installation, and convenient maintenance, minimizing downtime.



High Efficiency Jaw Crusher Machine Applications

Widely used in mining (crushing iron ore, limestone, granite, etc.), construction demolition (recycling concrete and asphalt), road and bridge construction (producing aggregates), and cement manufacturing. Ideal for primary crushing of materials with Mohs hardness 3-10.
①Mining
Primary crushing of various ores: Such as iron ore, copper, gold ore, and manganese ore.
②Aggregate Production
Quarries for sand and gravel: Produces high-quality base course, sub-base, and concrete aggregates from granite, basalt, and limestone.

Why Choose Us?
 * Factory-Direct Pricing: Competitive rates with no middleman markups.
 * Customization Services: Tailor-made solutions to meet unique project needs.
 * Fast Delivery: Timely shipment via reliable logistics partners worldwide.

In summary, if your operation requires reliable, efficient, and cost-effective primary crushing of hard materials, a Jaw Crusher is the indispensable solution.
